These general-purpose miniature circular connectors feature three-point bayonet coupling and five-key polarization, delivering excellent environmental resistance.

Designed to comply with MIL-C-26482 Series I solder-type specifications, they enable quick and reliable disconnection, and are fully intermateable and interchangeable with all MIL-C-26482 connectors – regardless of whether the mating units are solder or crimp type.

Widely adopted in military and industrial applications across the globe, these connectors are offered in a diverse range of sizes, styles and configurations.

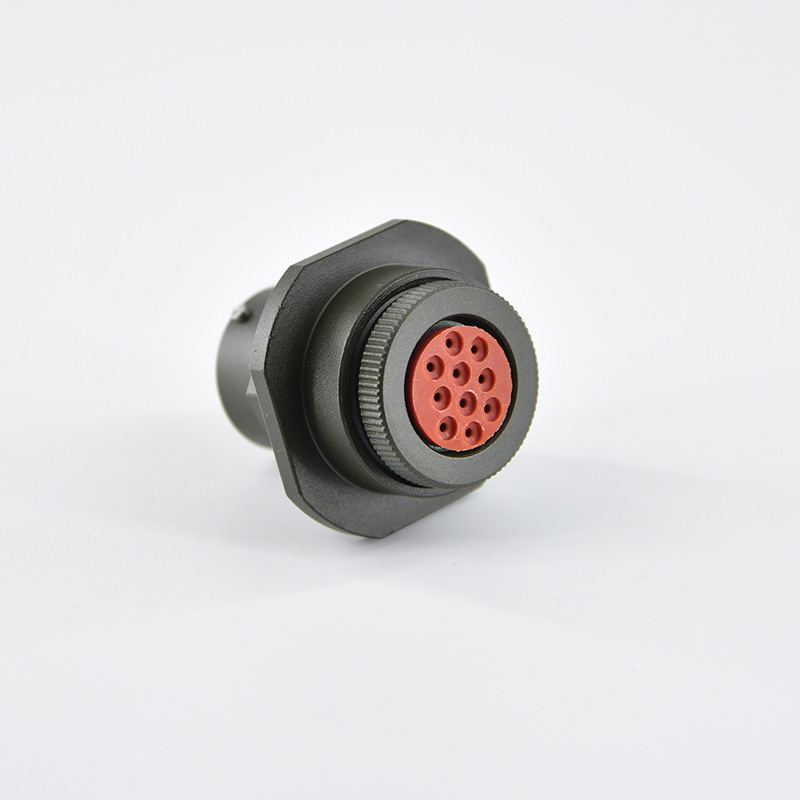

MS3114 /PT07   A /E  /F  jam nut receptacle

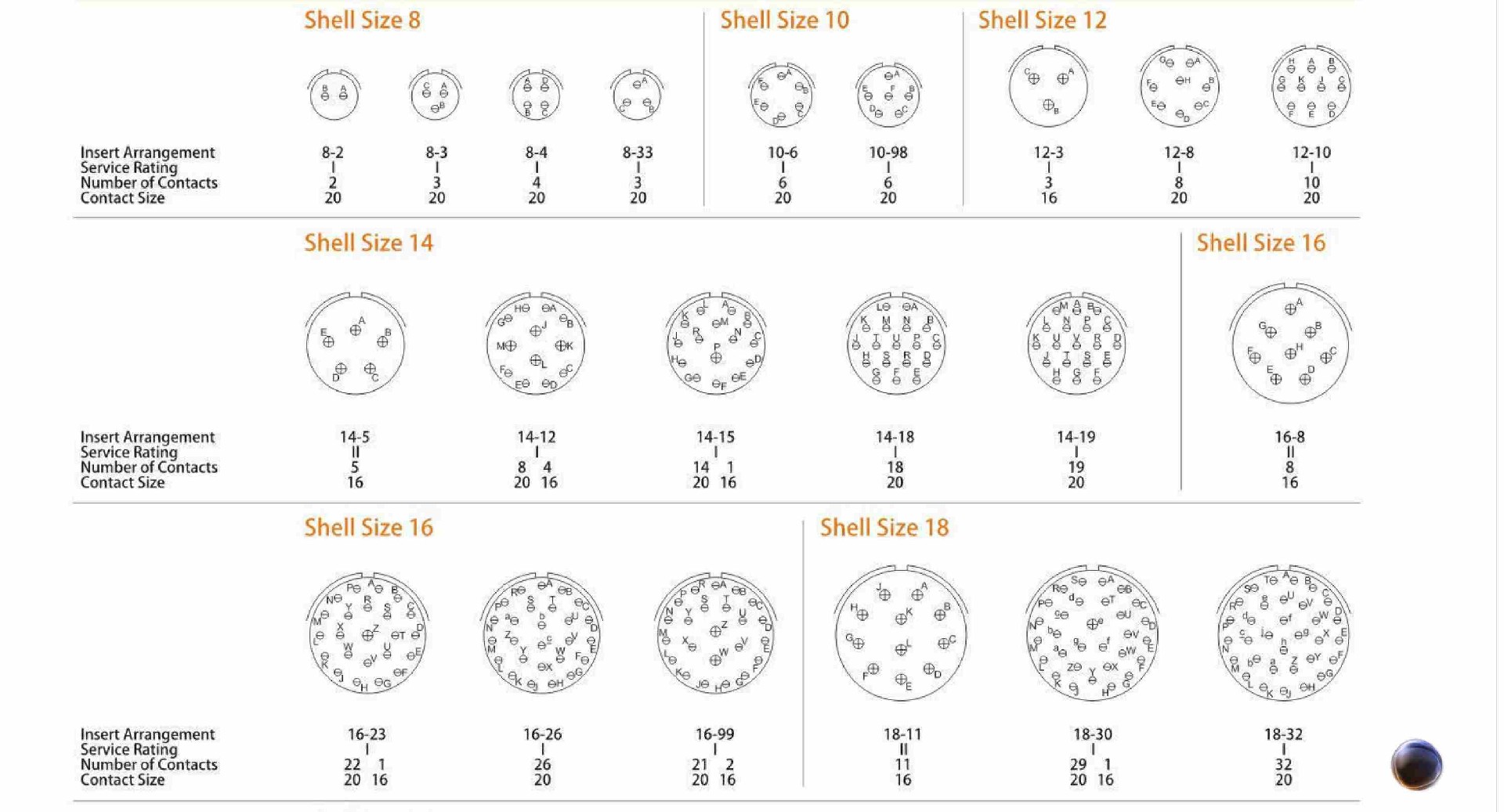

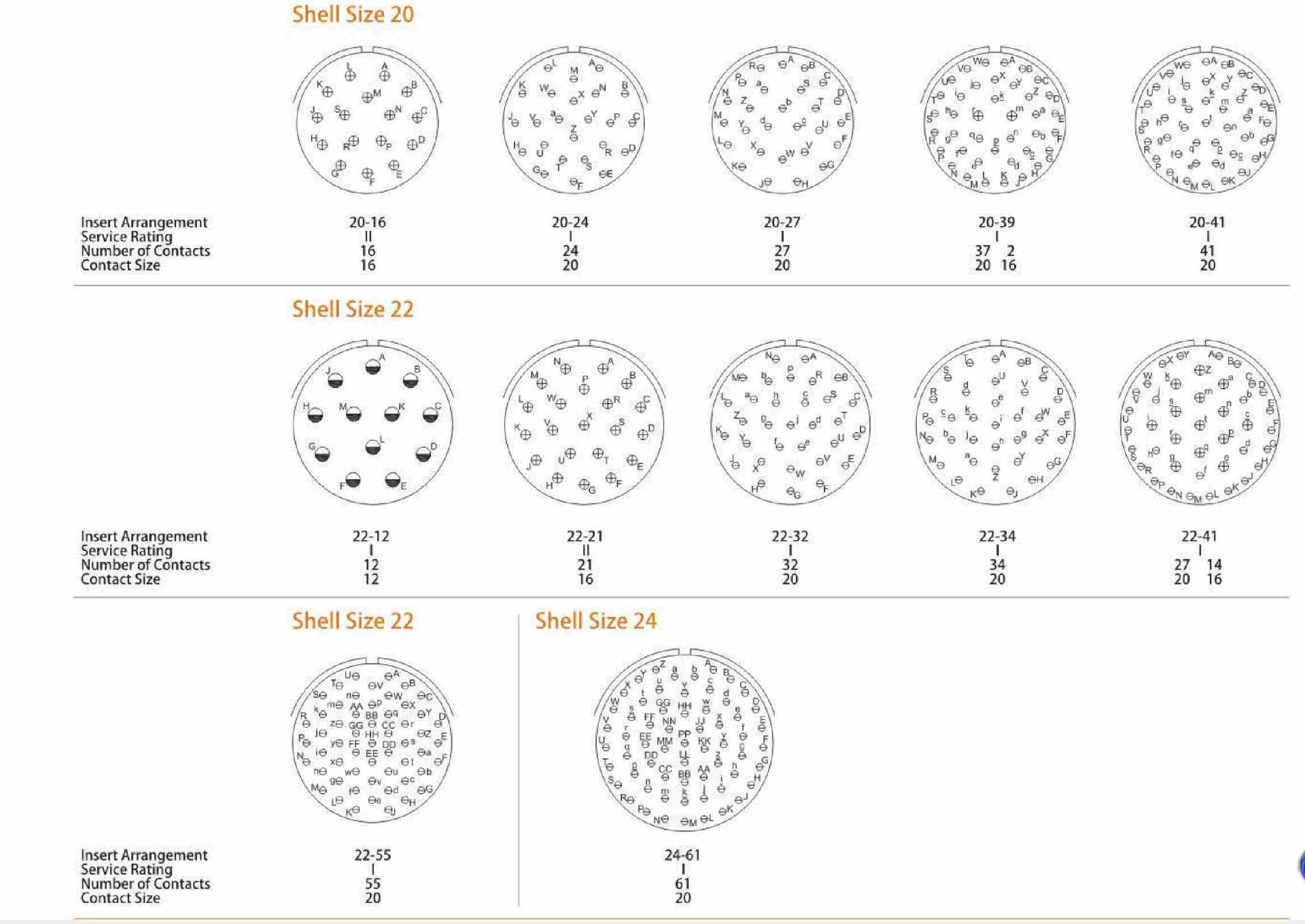

Contacts arrangement

Common features of all styles:

• All are for general duty applications and environmental sealing is achieved with the grommet and clamp design.

• Operating temperature is from –55°C to +125°; Operating voltage to 1000 VAC (RMS) at sea level.

• Pin and socket contacts are machined from low loss copper alloy and gold plated to eliminate contact corrosion and

provide an indefinite shelf life.

• All have resilient inserts which provide high dielectric strength and moisture barrier.

• A variety of shell finishes (including non-cadmium) and a variety of back-end accessories are available within the

styles.
